Model	VBD-024-096VTSP
Input Voltage	100-277V AC
Input Current	1.3A
Frequency	50/60Hz
Power Factor	0.95
Output voltage	24V DC
Output regulated Current	4.0A
Output Power	96W
Dimmable	Yes (Triac/ Phase-cut Dimming)
Waterproof	No
IP Rating	IP20
Class Certification	Class 2/ Class P/ Type HL/ Class II
Dimensions	330 x  30 x 22mm (13 x 1.18 x 0.86 in)
Certifications



Suitable for Dry and Damp Locations

Compatible with Forward-Phase, MLV, ELV, & Triac dimmers

Class II certification, double insulation layer.



Features:

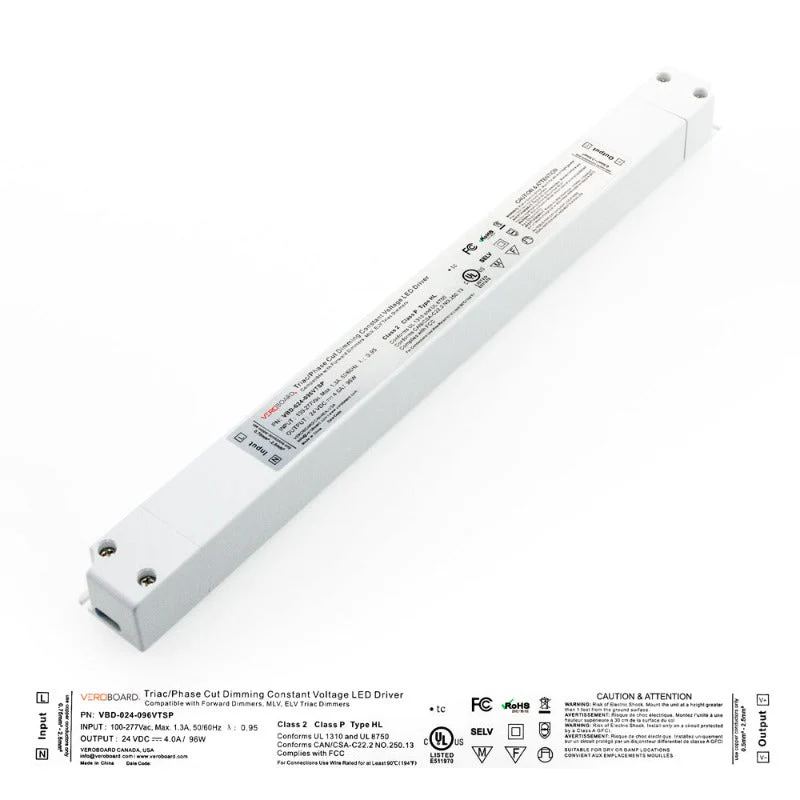

• The Super Slim VBD-024-096VTSP Triac Dimmable Constant Voltage LED Driver is a compact and reliable power supply designed for use with LED lighting systems.
• Input voltage range of 100-277V AC and an input current of 1.3A, making it compatible with a variety of power sources.
• High power factor of 0.95 indicates efficient operation.
• Output voltage of 24V DC and can regulate an output current of up to 4.0A, suitable for powering various LED lighting applications.
• Maximum output power of 96W, capable of powering multiple LED lights simultaneously.
• Dimmable using Triac/Phase-cut dimming technology, allowing for adjustable brightness levels as required.
• Not waterproof, with an IP rating of IP20, designed for indoor use only.
• Class certifications include Class 2, Class P, Type HL, and Class II, indicating compliance with specific safety and performance standards.
• Dimensions of 330 x 30 x 22mm (13 x 1.18 x 0.86 in) make it easy to install in a variety of locations.
• UL listed for safety and compliance, indicating rigorous testing and certification by Underwriters Laboratories, ensuring it meets stringent safety standards and has been tested for reliability and performance.
