Model	VBD-024-300VTHWJ
Input Voltage	100 – 277V AC
Input Current	3.4A
Frequency	47/63Hz
Power Factor	0.95
Output Voltage	24V DC
Output regulated Current	12.5A
Output Power	300W max
Dimmable:	Yes (Phase/ Triac/ Magnetic Low Voltage Dimming)
Class Certification	Class P Type HL/ SELV
IP Rating	IP65 (Outdoor Rated)

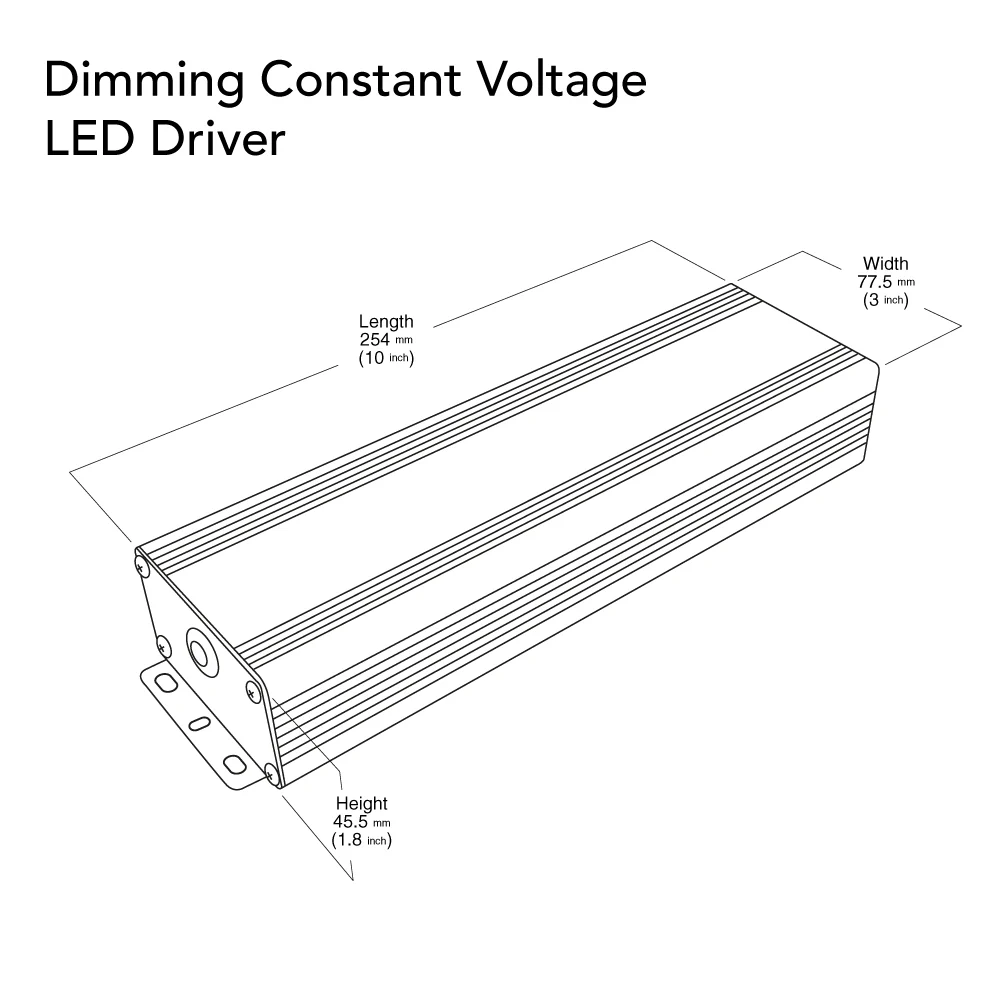

Dimensions (Without Box)	254 x 77.5 x 45.5mm (10 x 3 x 1.8 in)
Dimensions (Box)	440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in)
Certifications

Features:

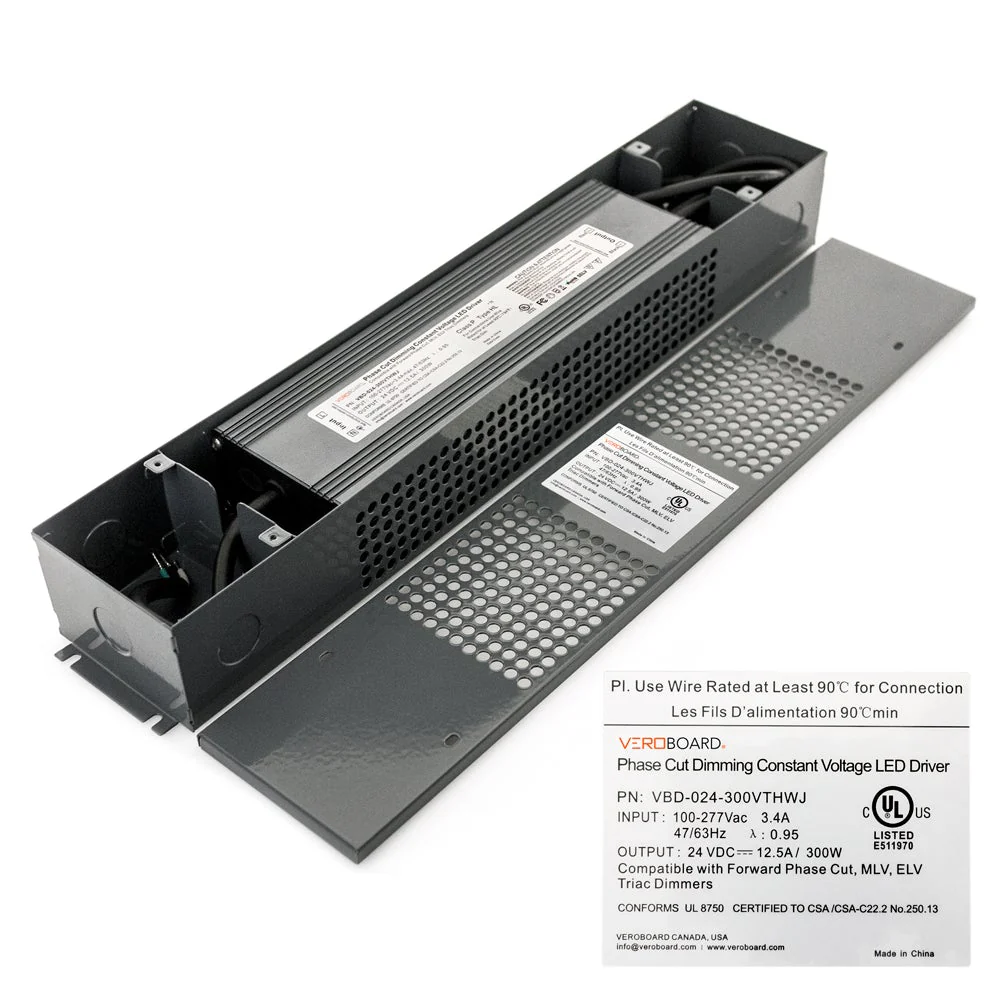

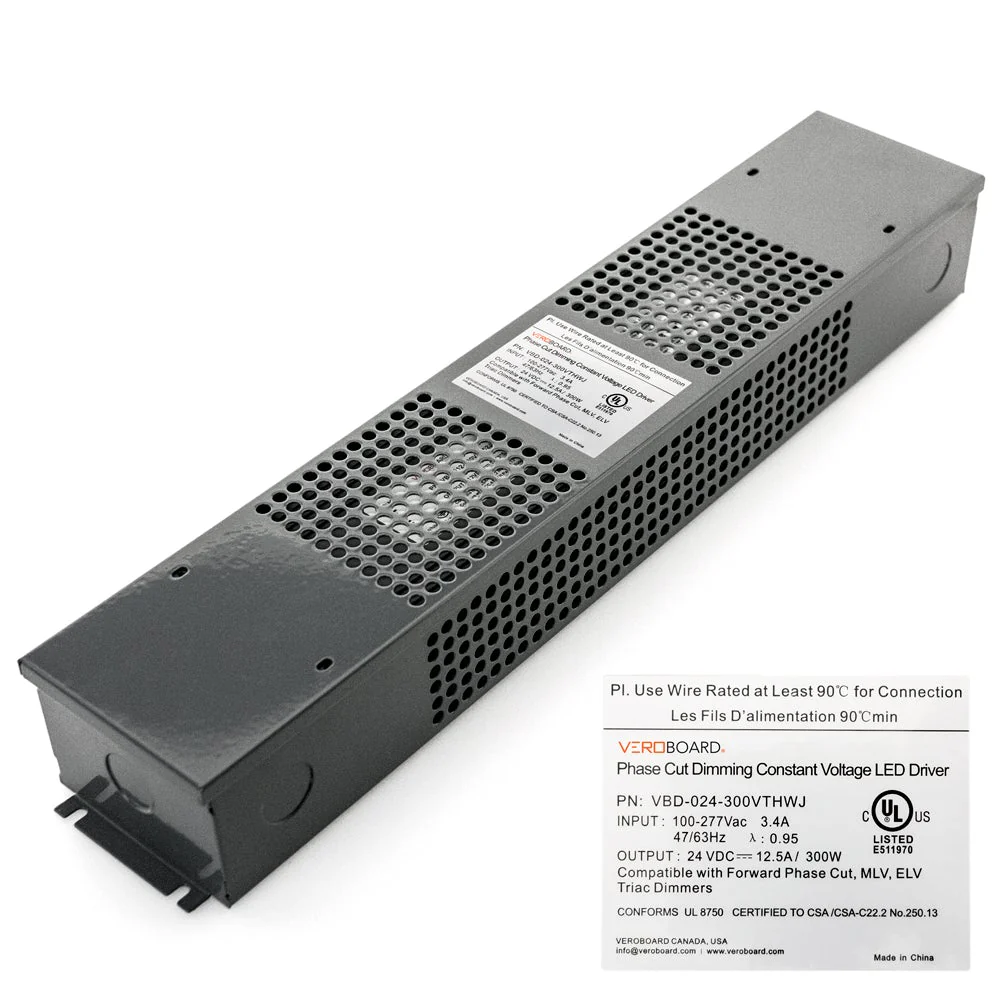

• The VBD-024-300VTHWJ is a high-power LED driver designed for use in LED lighting systems.
• It operates with an input voltage range of 100-277V AC and an input current of 3.4A, with a frequency range of 47/63Hz.
• The LED driver has a power factor of 0.95, indicating high energy efficiency.
• Provides a regulated output voltage of 24V DC with a maximum output power of 300W and an output regulated current of 12.5A, suitable for powering high-power LED lights.
• Features Triac dimming capability for greater flexibility in controlling the brightness of LED lights.
• Compatible with Phase and Magnetic Low Voltage dimming, making it suitable for various lighting systems.
• Designed for outdoor use with an IP65 rating, providing resistance to moisture, dust, and other outdoor elements.
• Dimensions: 254 x 77.5 x 45.5mm (10 x 3 x 1.8 in) without the box, 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box.
• Certified with Class P Type HL/SELV certification, indicating compliance with safety standards for use in hazardous locations.
• UL Listed certification ensures safety compliance for electrical products in North America.
