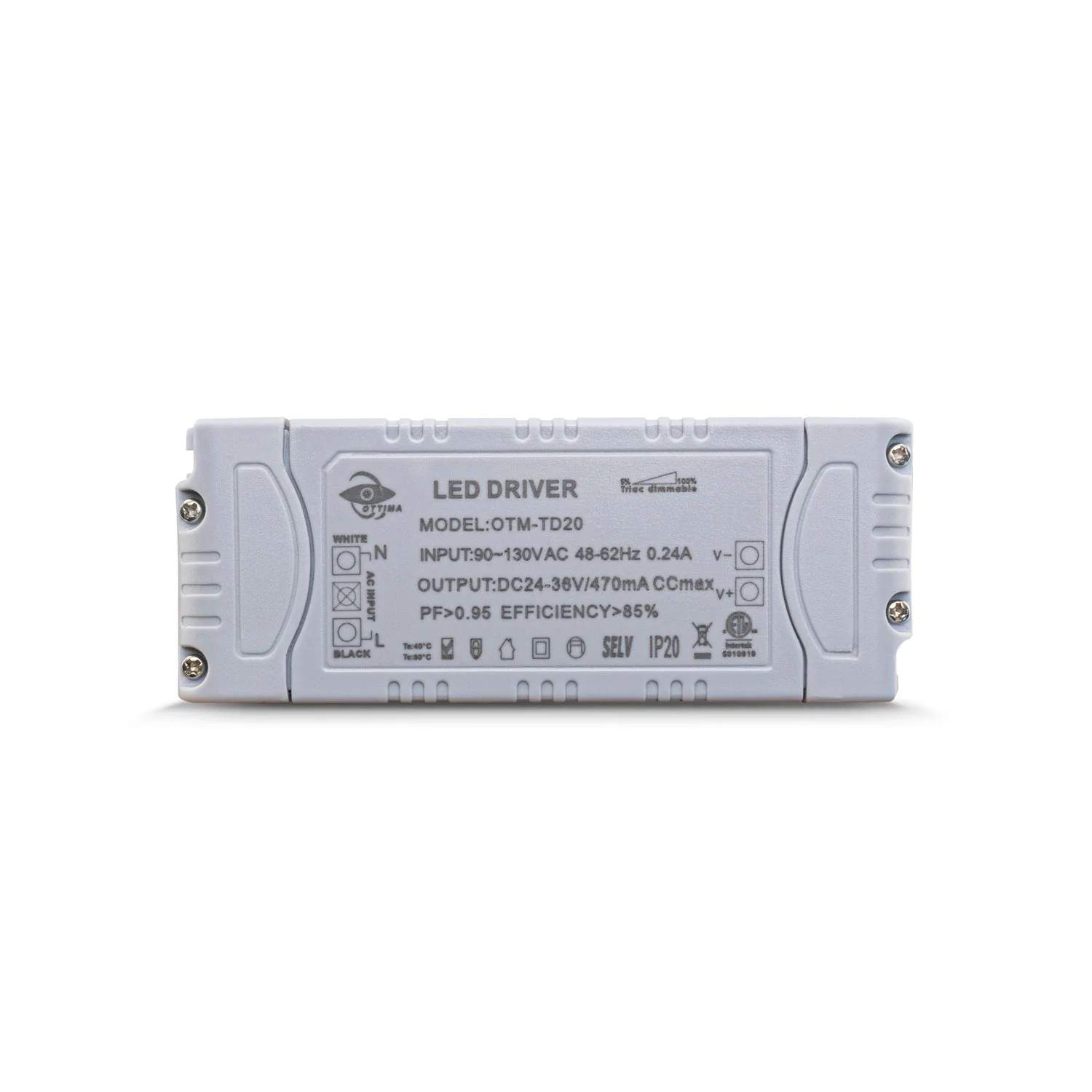

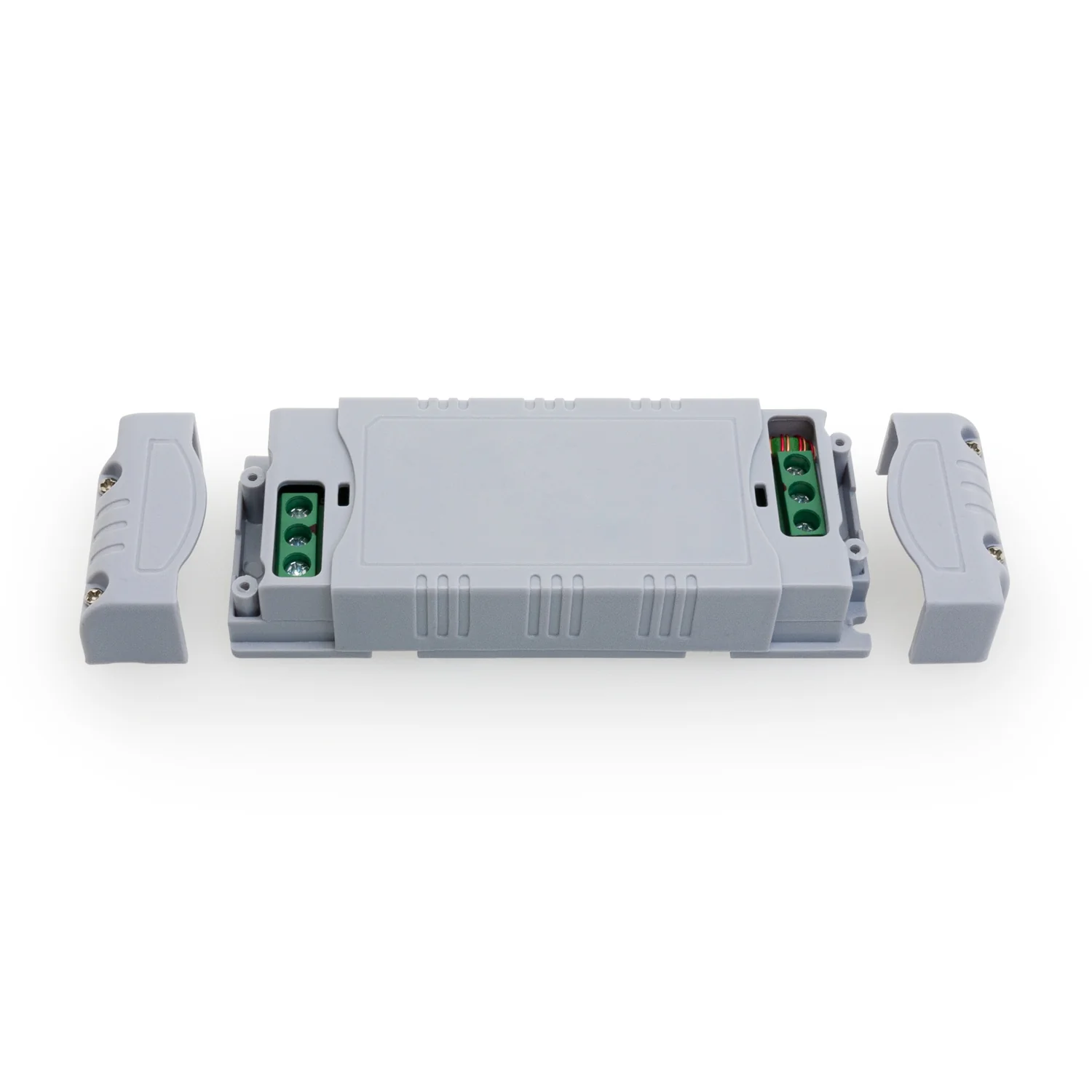

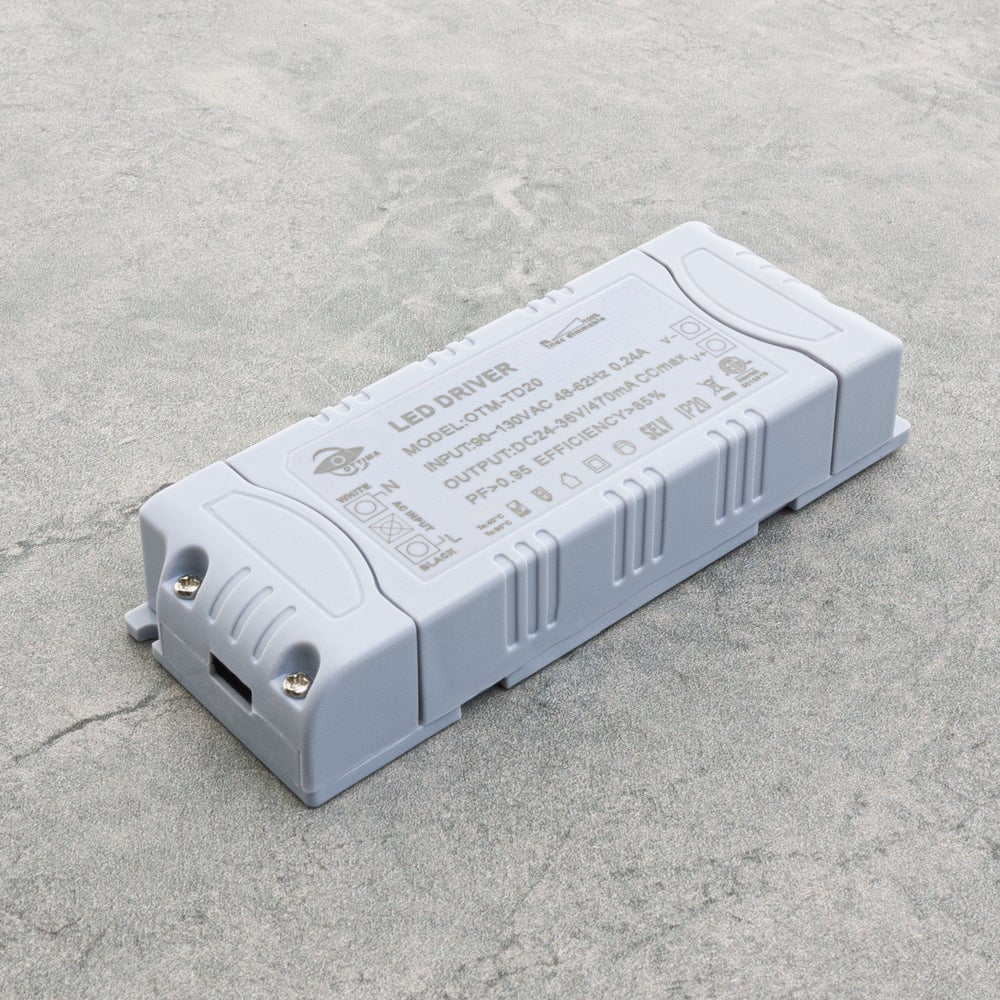

OTTIMA OTM-TD20 Constant Current Triac Dimming LED Driver, 470mA 24-36V 16.8W
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 470mA |
| Output Power | 16.8W |
| Output Voltage | 24-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |

|
Features:
- OTTIMA OTM-TD20 constant current LED driver
- Designed for indoor use with an IP20 rating
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (>0.95) and efficiency (>85%)
- Regulated output current: 470mA, maximum power: 16.8W
- Output voltage range: 24-36V DC
- Dimmable with Triac Dimming for adjustable light intensity
- Maximum ambient temperature (Ta): 40°C, case temperature (Tc): 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification for double insulation protection
- Reliable and efficient LED driver suitable for indoor use, powering LED lights with specific requirements, such as voltage range of 24-36V DC and maximum current of 470mA.
$10.35
Original: $34.51
-70%OTTIMA OTM-TD20 Constant Current Triac Dimming LED Driver, 470mA 24-36V 16.8W—
$34.51
$10.35Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
| Model | OTM-TD20 |
| Input Voltage | 90-130V AC |
| Input Current | 0.24A |
| Input Frequency | 48-62Hz |
| Power Factor | PF>0.95 |
| Efficiency | >85% |
| Output Regulated Current | 470mA |
| Output Power | 16.8W |
| Output Voltage | 24-36V DC |
| Dimmable | Yes (Triac Dimming) |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 90°C |
| IP Rating | IP20 (Indoor use only) |
| Dimensions | 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in) |
| Class Certification | Class II |
| Certification |
|
Features:
- OTTIMA OTM-TD20 constant current LED driver
- Designed for indoor use with an IP20 rating
- Input voltage range: 90-130V AC, input current: 0.24A, input frequency: 48-62Hz
- High power factor (>0.95) and efficiency (>85%)
- Regulated output current: 470mA, maximum power: 16.8W
- Output voltage range: 24-36V DC
- Dimmable with Triac Dimming for adjustable light intensity
- Maximum ambient temperature (Ta): 40°C, case temperature (Tc): 90°C
- Compact dimensions: 94 x 36 x 18.5mm (3.7 x 1.42 x 0.72 in)
- Class II classification for double insulation protection
- Reliable and efficient LED driver suitable for indoor use, powering LED lights with specific requirements, such as voltage range of 24-36V DC and maximum current of 470mA.
